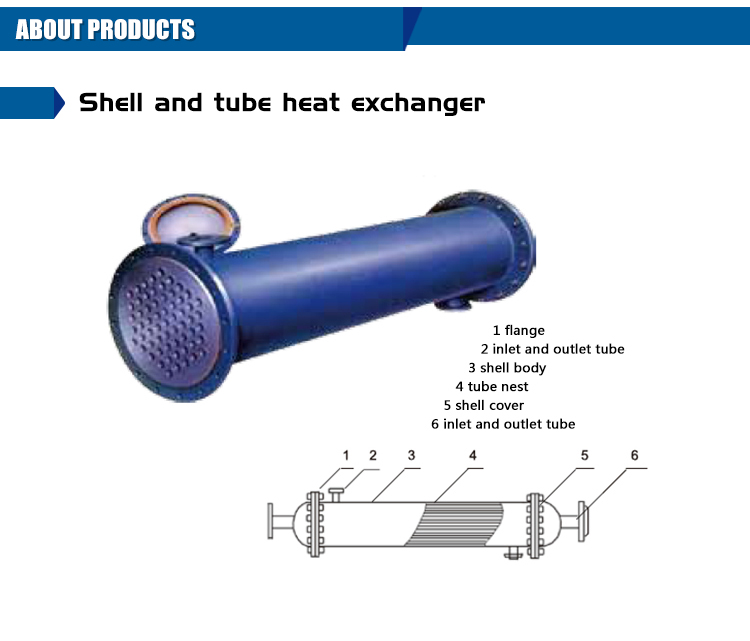

industrial machinery shell and tube heat exchanger

industrial machinery shell and tube heat exchanger

Product Description

The materials of Shell and Tube Heat Exchanger are generally carbon steel, stainless steel and copper. When the tube Plate made of carbon steel is used as the cooler, the weld joint between the tube plate and the tube often leaks, and the leakage enters the cooling water system to pollute the environment and cause material waste.

In the manufacture of shell and tube Heat Exchanger, manual arc welding is usually used for the welding of tube sheet and tube. There are some defects in weld shape, such as depression, air hole, slag inclusion, etc., and the distribution of weld stress is uneven. When using, the tubesheet is in contact with the industrial cooling water, and the impurities, salts, gases and microorganisms in the industrial cooling water will form corrosion to the tubesheet and weld, which is what we often call electrochemical corrosion. The results show that there are various ions and dissolved oxygen in industrial water, whether it is fresh water or sea water. The concentration change of chlorine ion and oxygen plays an important role in the corrosion shape of metal. In addition, the complexity of metal structure also affects the corrosion morphology. Therefore, pitting corrosion and crevice corrosion are the main corrosion types of tubesheet and tubesheet welds. From the outside, there will be a lot of corrosion products and deposits on the surface of the tube sheet, with pits of different sizes distributed. When seawater is used as medium, galvanic corrosion will occur. Chemical corrosion is the corrosion of medium. If the tube sheet of heat exchanger contacts with various chemical media, it will be corroded by chemical medium. In addition, there will be bimetallic corrosion between the tube sheet and the tube.


industrial machinery shell and tube heat exchangerindustrial machinery shell and tube heat exchangerindustrial machinery shell and tube heat exchanger

industrial machinery shell and tube heat exchanger

Nominal
diameter
Number of passes
tube
Quantity
Heat exchange area Nominal value/calculated value Tube passage cross-sectional area
Flow rate (m/hr) at 0.5m/sec
pressure
(MPa)
Tube length (m) Φ25*2.5
1500 2000 3000 4000 6000 Φ25*2
159 1 14 1.5/1.62 2/2.17 3/3.27 0.0044/0.0049 7.92/8.82 0.25
219 1 26 3/3.00 4/4.02 6/6.06 8/8.1 0.0082/0.0090 14.76/16.20 0.6
273 1 44 5/5.08 7/5.18 10/10.26 14/13.72 21/20.63 0.0138/0.0152 24.84/27.36 1.6
2 40 5/4.62 6/6.19 9/9.33 12/12.47 19/18.76 0.0063/0.0069 11.24/12.42 2.5
325 1 60 7/6.93 9/9.28 14/14.00 19/18.71 28/28.13 0.0018/0.0208 33.84/37.44 0.6
2 56 6/6.47 9/8.66 13/13.05 17/17.46 36/26.26 0.0088/0.0097 15.84/17.46 1
400 1 119 14/13.47 18/18.41 28/27.76 37/37.10 55/55.8 0.0374/0.0412 67.32/74.16 1.6
2 110 13/12.70 17/17.02 26/25.66 14/34.20 50.51.58 0.0173/0.0190 31.14/34.20 2.5
500 1 185 45/4.15 55/57.68 85/86.74 0.0581/0.0641 104.58/115.38
2 180 40/41.99 55/57.68 85/86.74 0.0283/0.0312 50.94/56.16
600 1 269 60/62.7 85/83.88 125/126.13 0.0845/0.0932 152.10/167.76
2 266 60/32.05 80/82.94 125/14.72 0.0418/0.0461 75.24/83.98
700 1 379 90/88.41 1120/118.17 175/177.71 0.0091/0.1313 214.38/236.34
2 358 85/83.51 110/111.62 165/167.85 0.0562/0.0620 101.14/111.60
800 1 511 120/119.20 160/159.16 240/239.60 0.1605/0.1770 288.90/318.60
2 488 115/113.83 150/152.16 230/228.81 0.0767/0.0845 138.06/152.10
900 1 649 150/151.39 200/202.36 305/304.3 0.2039/0.2248 367.02/404.46
2 630 145/146.96 195/196.44 295/295.40 0.0990/0.1091 178.20/196.38
1000 1 805 185/187.78 250/251.00 375/377.45 0.2529/0.2788 455.22/501.74
2 792 185/184.75 245/246.95 370/371.36 0.1244/0.1374 223.92/246.96
Product classificati
industrial machinery shell and tube heat exchanger
Company information


industrial machinery shell and tube heat exchanger


Wuxi Dingfeng pressure vessel Co., Ltd



Wuxi Dingfeng pressure vessel Co., Ltd. specializes in the production of reactor, evaporator, stainless steel reactor, stainless steel reactor, scraper evaporator, Heat Exchanger, tubular heat exchanger, spiral Plate Heat Exchanger. Our company has the first, second and third class pressure vessel manufacturing license and passed the ISO9001:2000 international quality system certification. Our factory has established long-term technical cooperation with Wuxi Chemical Design Institute, Jiangnan University, Shanghai Chemical Design Institute and 702 Institute of China shipbuilding industry group. As long as we are engaged in the design, manufacturing, installation, debugging and process technology development of petroleum, chemical, biological and pharmaceutical equipment, technology transfer and related technical consultation and service.


At present, the factory has fixed assets of 85 million yuan, covers an area of 28000 square meters, and modern large-scale industrial plants of 21000 square meters. At present, there are 197 employees, including 60 engineering technicians, 35 technicians in design, process, material, welding and quality inspection, including 4 senior engineers, 16 engineers and 9 assistant engineers. Give full play to the professional skills and innovation ability of all employees, and use the computer-aided system (CAD, 3D3S, SW6) to carry out personalized product design and production according to different products and processes of users, so as to meet the needs of users for diversified and high-quality products.
